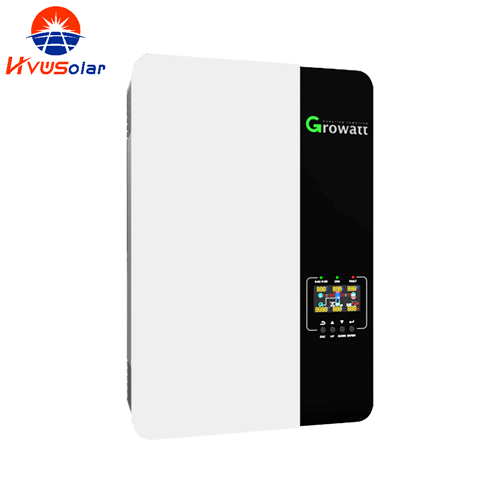

Off Grid Solar Inverter 5KW ES Single Phase Inverter

Short Description:

Item No.:  Growatt SPF 5000ES

Product Origin: China

Certificate: CE

Size: 485*330*135mm

Warranty: 2 years

Power Range: 5000w

INQUIRY

Details

Growatt Off Grid 5kw Inverter Pure Sine Wave DC AC Solar Single Phase Inverter

High frequency, wide PV input voltage, 230Vac output

Growatt SPF 5000 ES inverters is off-grid inverter for backup power and self-consumption application, maximum power PV input voltage up to 450VDC, also it can work without battery indirect savings in investment costs.

Integrated MPPT charge controller

It can work with battery or without battery

Maximun PV input voltage up to 450VDC

Configurable grid or solar input priority

Optional WIFI/ GPRS remote monitoring

Parallel for scalability


SPF 5000 ESDatasheet	SPF 5000 ES
Battery Voltage	48VDC
INVERTER OUTPUT
Rated Power	5000VA/ 5000W
Parallel Capability	Yes, 6 units
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz
Surge Power	10000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10 ms (For Personal Computers); 20 ms (For Home Appliances)
SOLAR CHARGER
Max. Recommended PV Power	5500W
MPPT Range @ Operating Voltage	120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Solar Charge Current	100A
Maximum Efficiency	97%
AC CHARGER
Charge Current	80A
AC Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
PHYSICAL
Dimension (W/H/D)	330/485/135mm
Net Weight (kgs)	12
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C - 55°C
Storage Temperature	“-15°C - 60°C
