Sunicorn-MHP 3000LV (120Vac) 3kw
This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.

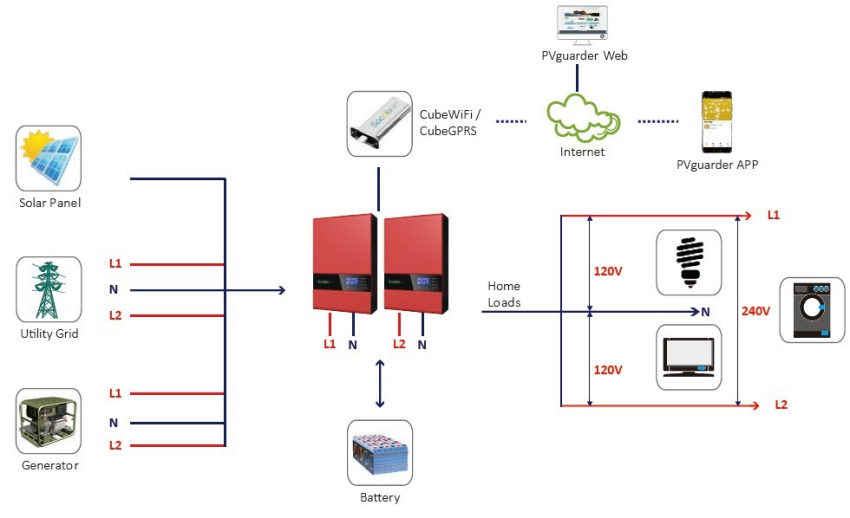

The inverter is with 120V output, can parallel using 2 units to make split phase inverter groups 120V/240V.
Overview
Model | Sunicorn MHP-3000W-24 | Sunicorn MHP-3000W 48 |
RATED POWER | 3000VA/ 3000W | 3000VA/ 3000W |
System DC voltage | 24VDC | 43 VDC |
Splite phase operation | Yes, need at least 2 units parallel | Yes, need at least 2 units parallel |
Parallel operation | Up to 6 units | Up to 6 units |
Monitorinig Option | WiFi or GPRS | WiFi or GPRS |
OUTPUT | ||
AC Voltage | 110/120AC | 110/120AC |
Peak Efficiency | 93% | 93% |
Transfer Time | 10 ms (For Personal Computeis); 20 ms (For Home Appliances) | |
Waveform | Pure Sine Wave | Pure Sine Wave |
Solar Charger & AC Charger | ||
Max. PV Array Open Circuit Voltage | 145V | 145V |
Max. PV Array Power | 2000W | 4500W |
Operating Voltage MPPT Range | 60-115Vdc | 60-115Vdc |
Max. Solar Charge Current | 80A | 80A |
AC Input Voltage Range | 65-140 VAC | 65-140 VAC |
Frequency Range | 50Hz/60Hz | 50Hz/60Hz |
Max. AC Charge Current | 60A | 40A |
Max. Charge Current (PV + AC) | 140A | 120A |
PHYSICAL | ||
Demension | 455 x 295 x 130mm | 455 x 295 x 130mm |
Weight | 11.5kg | 11.5kg |
Communication Interface | USB/RS4B5 | USB/RS4B5 |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | 5% to 95% Relative Humidity(Non-condensing) |
Operating Temperature | 0°C ~ SOT | 0°C ~ SOT |
Storage Temperature | -15°C-60°C | -15°C-60°C |
