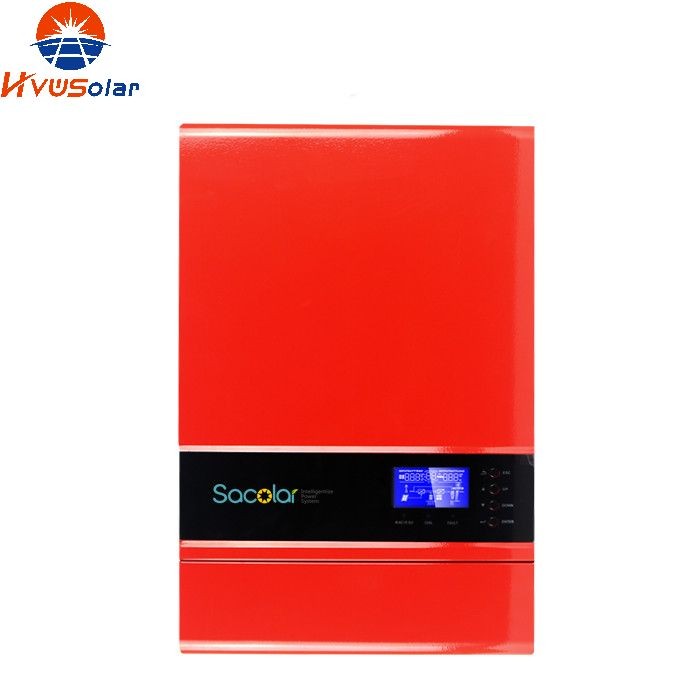

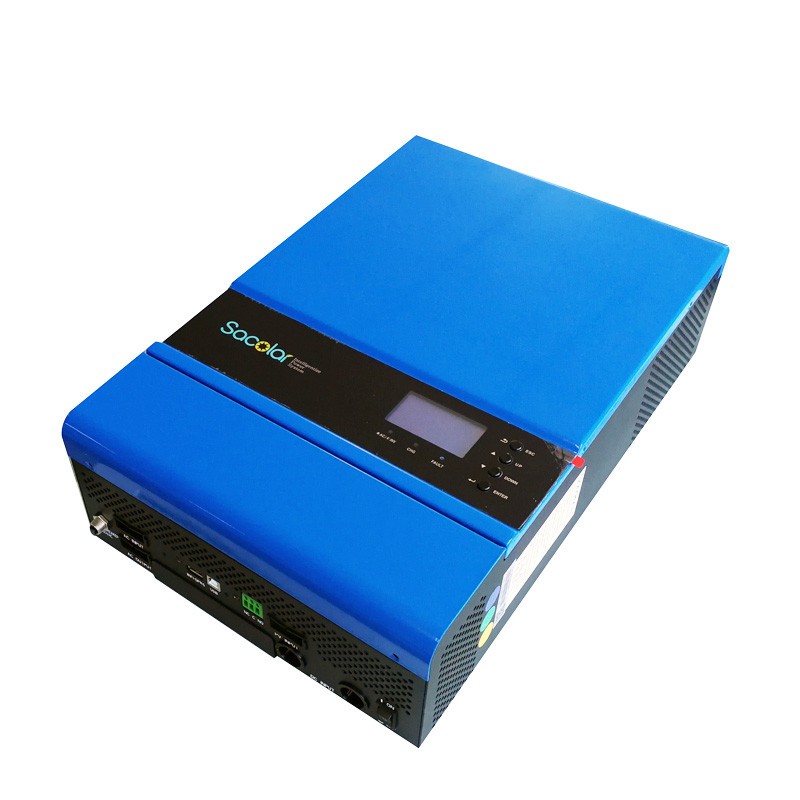

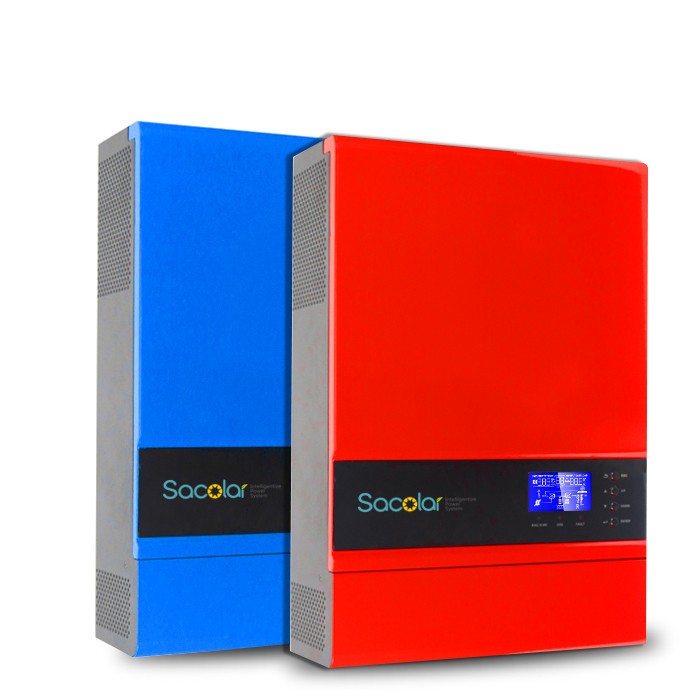

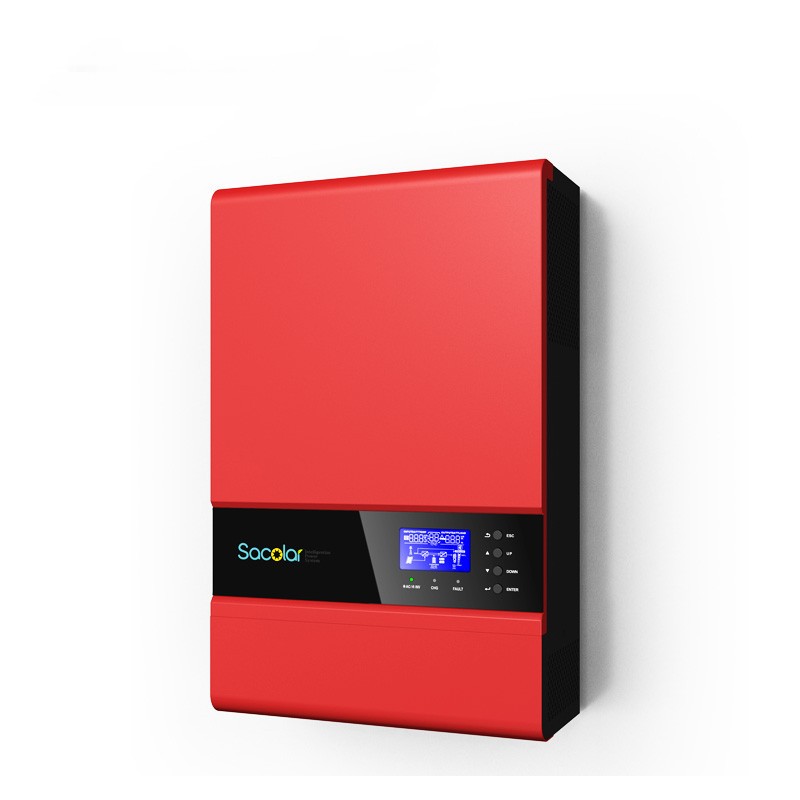

Sunicorn-MHP (MPPT) 2kw-5kw

Short Description:

Rated power 2KW to 5KW

MPPT solar charge controller to maximize the solar output

High frequency inverter with small size and light weight

Pure sine wave AC output

Overload, short circuit and deep discharge protection

Configurable AC/ solar input priority via LCD setting

Compatible to mains voltage or generator power

WIFI/ GPRS remote monitoring (optional)

Parallel operation for Sunicorn MHP 4KW/5KW

INQUIRY

Details

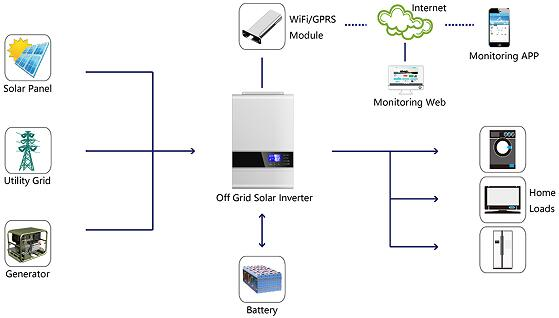

This is a multi-function machine, combining functions of inverter, MPPT solar charger and UPS module to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Overview


Model	Sunicorn-MHP 2kw	Sunicorn-MHP 3kw	Sunicorn-MHP 4kw	Sunicorn-MHP 5kw
Battery Voltage	24 VDC/43 VDC	24 VDC/48 VDC	48 VDC	48 VDC
Monitorinig Option	WiFi or GPRS	WiFi or GPRS	WiFi or GPRS	WiFi or GPRS
INVERTER OUTPUT
RATED POWER	2000VA/ 2000W	3000VA/3000W	4000VA/ 4000W	5000VA/ 5000W
Parallel Capability	No	No	Yes, 6units	Yes, 6units
AC Voltage Regulation (Batt.Mode)	230VAC ± 5%@ 50/60Hz	230VAC ± 5%@ 50/60Hz	230VAC ± 5%@ 50/60Hz	230VAC ± 5%@ 50/60Hz
Surge Power	4000VA	6000VA	8000VA	10000VA
Efficiency (Peak)	93%	93%	93%	93%
MPPT SOLAR CHARGER
Maximum PV Array Power	1500W@24V/1800W@43V	1500W@24V/1800W@48V	4500W	4500W
MPPT Range @ Operating voltage	30~80VDC@24V/ 60~115VDC@48V	30~80VDC@24V/ 60~115VDC@48V	60VDC ~ 115VDC	60VDC-115VDC
Maximum PV Array Open Circuit Voltage	102VDC@24V/145VDC@48V	102VDC@24V/145VDC@4SV	145VDC	145VDC
Maximum Solar Charge Current	50A@24V/30A@48V	50A@24V/30A@48V	80A	80A
Maximum Efficiency	98%	98%	98%	98%
AC CHARGER
Max. AC Charge Current	30A@24V/15A@48V	30A@24V/15A@48V	60A	60A
AC Input Voltage	230 VAC	230 VAC	230 VAC	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
AC BYPASS
transfer Time	10 ms (For Personal Computers); 20 ms (For Home Appliances)
PHYSICAL
Dimension, Dx WxH (mm)	385 x280x130	385 x280x130	455x295x130	455x295x130
Net Weight(kgs)	7	7.5	11	11.5
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C - 55°C	0°C - 55°C	0°C - 55°C	0°C - 55°C
Storage Temperature	-15°C-60°C	-15°C - 60°C	-15°C - 60°C	-15°C-60°C
